Engineers have often told us that it’s challenging designing aircraft harnesses with digital components in DVI (digital video interface) systems that can reliably stand up to demanding radar environments.

Gore offers a single-link cable solution designed specifically for the digital component of DVI systems that the military can always trust and rely on during missions.

GORE DVI Cables (Digital Only) are proven to deliver exceptional signal quality and high data rate video transmission in demanding EMI (electromagnetic interference) environments. They also support the highest video resolution for optimal viewing on aircraft cockpit and workstation displays. Unlike many substitutes, they meet rigorous military aerospace standards for impedance control, insertion loss, skew and EMI shielding necessary for stable performance in DVI systems.

Easy Fit into Standard Harness Designs
Gore DVI Cables in Standard Harness Cross-Section

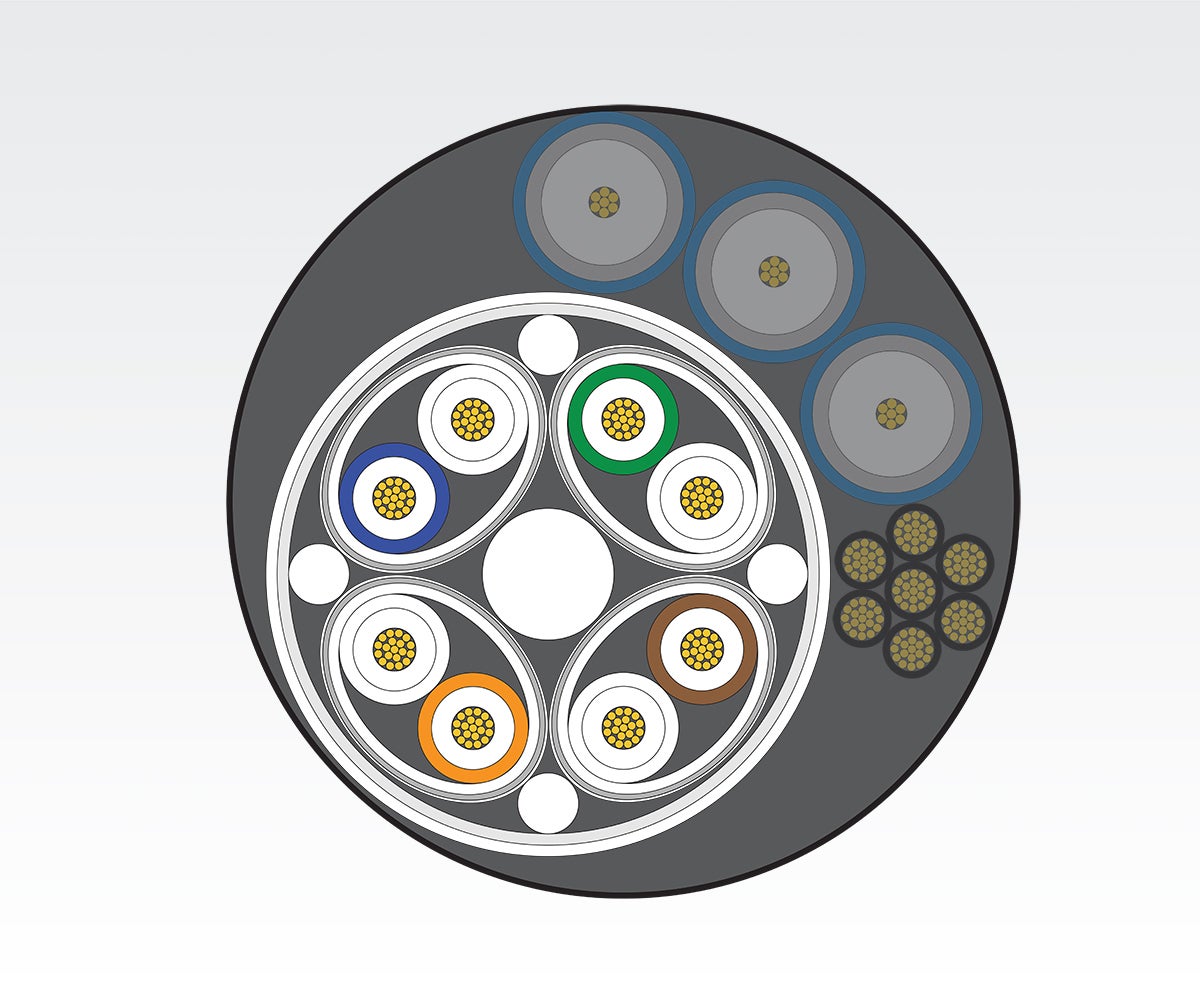

Standard harness cross-section with GORE DVI Cables (Digital Only)

Our single-link cables make it easier for design engineers to use them in standard DVI harnesses. They’re smaller, lighter and more flexible without sacrificing durability compared to substitutes. They fit easily into a harness cross-section with other components without getting damaged or breaking, saving you time and money on cable replacements.

Applications

Designed specifically for standard harnesses with digital components, GORE DVI Cables (Digital Only) provide satisfactory results in airborne applications, like:

  • cockpit displays
  • aircrew workstation displays
  • mission systems
  • weather mapping

Our cables can also be terminated with a variety of leading high-speed aerospace connector systems and backshells, like ARINC and MIL-STD-38999 with size 8 contacts.

Features & Benefits

Unlike industry substitutes, GORE DVI Cables (Digital Only) are built with extremely durable materials proven to defend against complex maintenance and operational conditions, including:

  • single-link DVI digital component design
  • temperature- and abrasion-resistant materials
  • chemically inert, EMI shielding materials
  • lightweight with smaller diameters

To system architects and engineers, our reliable cables offer a host of benefits that improve their overall performance in defense aircraft, like:

  • exceptional signal quality for high-speed video transfer
  • support highest video resolution for optimal viewing on displays
  • meet requirements for impedance control, insertion loss, skew, EMI shielding
  • robust protection and stable performance in demanding radar environments
  • easy fit into standard DVI harnesses with small, lightweight, flexible construction
  • compatible with a variety of high-speed connector systems and backshells

Technical Specs & Drawing

These values demonstrate the electrical, mechanical and environmental performance of GORE DVI Cables (Digital Only) for defense aircraft. Download our data sheet for more cable characteristics, performance data, qualifications and part number. Also, fill out a short form for instant access to the drawing.

DATA SHEET DRAWING

Elec./Mech./Environ. PropertyValue
Standard Impedance Ohms100 ± 10
Typical Operating Voltage V<15
Nominal Velocity of Propagation %80
Nominal Time Delay ns/m (ns/ft.)4.07 (1.24)
Capacitance pF/m (pF/ft.)40.0 (12.0)
Maximum Skew ps/m (ps/ft.)
  Pair-to-Pair
  Within Pair
52.50 (16.0)
13.12 (4.0)
Dielectric Withstanding Voltage Vrms
  Conductor-to-Conductor
  Conductor-to-Shield
1500
1000
Jacket MaterialEngineered Fluoropolymer
Jacket ColorWhite (Laser Markable)
ConductorSliver-Plated Copper Alloy
Conductor Color-CodingBlue/White, Brown/White, Green/White, Orange/White
Dielectric MaterialExpanded PTFE/PTFE
Temperature Range °C-65 to +200



Get Samples or Buy

Choosing GORE DVI Cables (Digital Only) means you no longer have to worry about designing harnesses with digital components that are inadequate for radar environments. Order a complimentary sample of our pre-qualified cable to evaluate its quality and compatibility with your defense aircraft harness configuration.

If you’re ready to buy now, connect with an approved distributor for in-stock availability. Or, call us today to talk about your specific needs and requirements.

SAMPLES PURCHASE CONTACT US

Resources

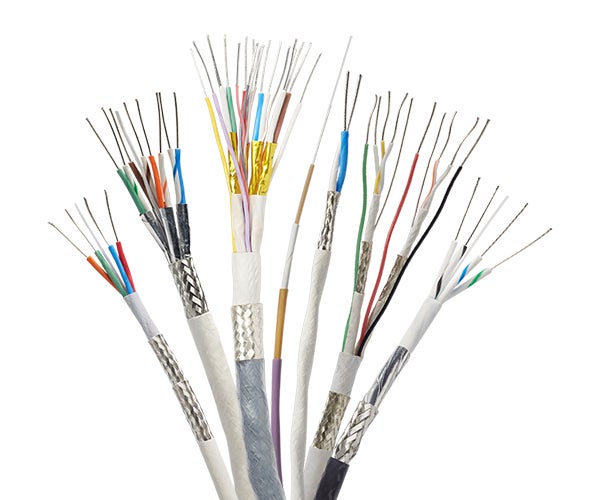

Gore’s portfolio of high-speed data transmission cable assembly solutions for aerospace & defense applications.
