NON-STOP SIGNAL TRANSFER

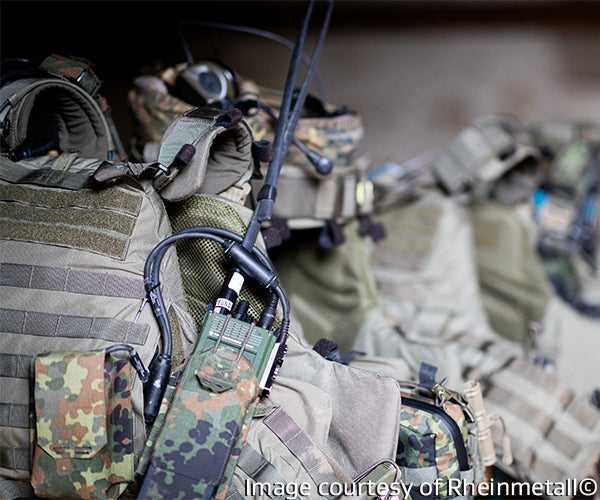

Get a sampleThe success of every military ground mission depends greatly on soldiers receiving critical information immediately without any signal or data glitches. They must also charge their portable devices as fast as possible without interruptions.

Meeting 2.0, 3.0 and 3.1 protocols, GORE USB Cables offer non-stop signal transmission up to 10 Gb/s without interruptions. They make sure high volumes of data and video are uploaded and downloaded instantly, so ground forces get real-time Intel. All versions of our cable bundles also support the latest power management systems so soldiers can comfortably charge carry-on devices quickly, easily and without delay.

LIFETIME MECHANICAL PROTECTION

The battlefield can be extremely challenging for power and data cables, exposing them and sensitive components to grueling conditions. For added protection, we manufacture our cable bundles with engineered fluoropolymer materials proven to deliver a lifetime of service. They can easily tolerate the most harmful conditions, like extreme temperatures, abrasion, chemicals and more

You can trust that sturdy GORE USB Cables will perform without failure and last long after the alternatives have surrendered to harsh environments.

Construction of Gore USB Cables
A
B
C
D
E
F

Engineered fluoropolymer jacket

Chiudi

Braided shield

Chiudi

Color-coded composite dielectric

Chiudi

Silver-plated copper alloy conductor

Chiudi

Drain wire

Chiudi

ePTFE Binder

Chiudi

Sturdy bundle design of GORE USB Cables.

Applications

Meeting the latest protocols, GORE USB Cables deliver trustworthy results in a variety of high power and high data rate transmission applications, like:

  • content loading
  • data transfer
  • HD streaming video systems
  • peripheral/sensor networking
  • portable electronic devices
  • power remote devices
  • soldier systems
  • vehicle/dismount connectivity

Our military cables can also be terminated with a variety of high-speed connector systems and backshells such as ARINC and MIL-STD-38999 with size 8 contacts.

Features & Benefits

We engineer GORE USB Cables with sturdy features that make them resistant to challenging environmental factors, maintenance activities and operational conditions, including:

  • chemically inert materials
  • temperature-resistant materials
  • abrasion-resistant materials

To system architects and engineers, these cable bundles deliver numerous benefits that ensure their overall performance in defense vehicles, like:

  • meet 2.0, 3.0 & 3.1 high data rate protocol requirements
  • nonstop signals for data and video transmission up to 10 Gb/s
  • instant high-volume content uploads and downloads
  • charge carry-on devices quickly and easily without delays
  • lifetime protection against grueling land and in-vehicle conditions
  • compatible with a variety of high-speed connector systems and backshells

Technical Specs & Drawings

These values demonstrate the electrical, mechanical and environmental performance of GORE USB Cables for defense land systems. Download our data sheet for more cable characteristics, qualifications and part numbers. Also, fill out a short form for instant access to drawings.

DATA SHEET DRAWINGS

Elec./Mech./Environ. PropertyValue
Signal Transmission Speed Gb/sUp to 10
Standard Impedance Ohms
  High-Speed Pairs
  Low-Speed Pair
90 ± 5
90 ± 10
Typical Operating Voltage V< 15
Nominal Velocity of Propagation %80
Nominal Time Delay ns/m (ns/ft)4.07 (1.24)
Capacitance pF/m (pF/ft)50.0 (15.2)
Maximum Skew Within Paira ps/m (ps/ft)15.0 (4.6)
Dielectric Withstanding Voltage Vrms
  Conductor-to-Conductor
  Conductor-to-Shield
1500
1000
Jacket MaterialbEngineered Fluoropolymer
Jacket ColorWhite (Laser Markable)
ConductorSilver-Plated Copper Alloy
Conductor Color-CodingHigh Speed Pairs: Blue/White, Yellow/White, Orange/White, Violet/White
Low-Speed Pair: Green/White
Power Pair: Black/Red
Dielectric MaterialExpanded PTFE/PTFE
Temperature Range °C-65 to +200

a Shielded twisted pairs only
b Gore's 3.0 version, part number GSC-01-85201-VG includes a PU halogen-free jacket.

Get Samples or Buy

For in-vehicle systems and soldier carry-on devices requiring USB 2.0, 3.0 and 3.1 protocols, our cable bundles offer unique characteristics, like power, speed, sturdiness and reliability over alternatives. Order a pre-qualified, complimentary sample today to validate our cables in your defense application.

To order GORE USB Cables now, connect with an authorized distributor for in-stock availability. Or, contact us to discuss your specific characteristic limits and application needs.
